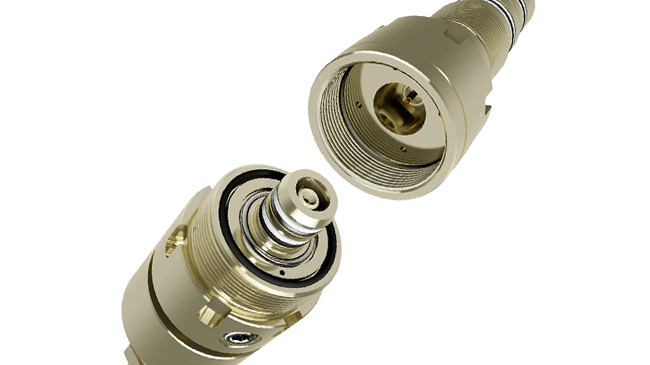

Dry Mate Field Attachable

The Field Attachable Dry-Mate connectors eradicate the need for offshore splicing and is used for Subsea equipment including Tubing Hanger & Tubing Hanger Running Tools.

  • high temperature and high pressure
Subsea Instrument Connector

Overview

The WellConnect™ Dry Mate consists of two halves, male and female. The male half has metal-to-metal sealing whilst the female is a Field Attachable Connector, eradicating the need for offshore splicing.

The Connectors are used for Subsea equipment including Tubing Hanger & Tubing Hanger Running Tools.

Operational Requirements

  • Design Life: 25 years
  • Location within Completion: Subsea TH & THRT
  • Rated Pressure: 15,000 psi
  • Test Pressure: 22,500 psi
  • Working Temperature Range: -20ºC to 155ºC
  • Storage Temperature Range: -18ºC Min

Mechanical Requirements

  • Envelope Diameter: As per Customer Specifications

Features & Benefits

  • Metal to Metal Sealing
  • Field Assembled & Pressure Tested
  • Gold-plated Contacts
  • Crimp Technology
